AI Bathroom Design: Redesign a Bathroom Without Moving the Plumbing
Bathrooms are small, expensive per square metre, and full of things that can't easily move: the drain, the soil pipe, the window, the door. That's exactly why AI is so useful for them. It lets you try a completely different bathroom in the space you already have, without anyone picking up a tile cutter.
It also means the render has to respect the room. This guide shows how to redesign a bathroom with AI while keeping the fixtures where the plumbing is, and which clearances to check before a render becomes a plan.
The short answer: photograph the bathroom from the doorway, ask an AI image model to keep the room size, window, door, bath, basin and toilet positions, and change only finishes, fittings and lighting. Keeping fixtures in place is also the cheapest way to renovate. Before you build, check real clearances: NKBA guidelines recommend the toilet's centre sits 18 inches from a side wall, with 15 inches as the tight minimum.

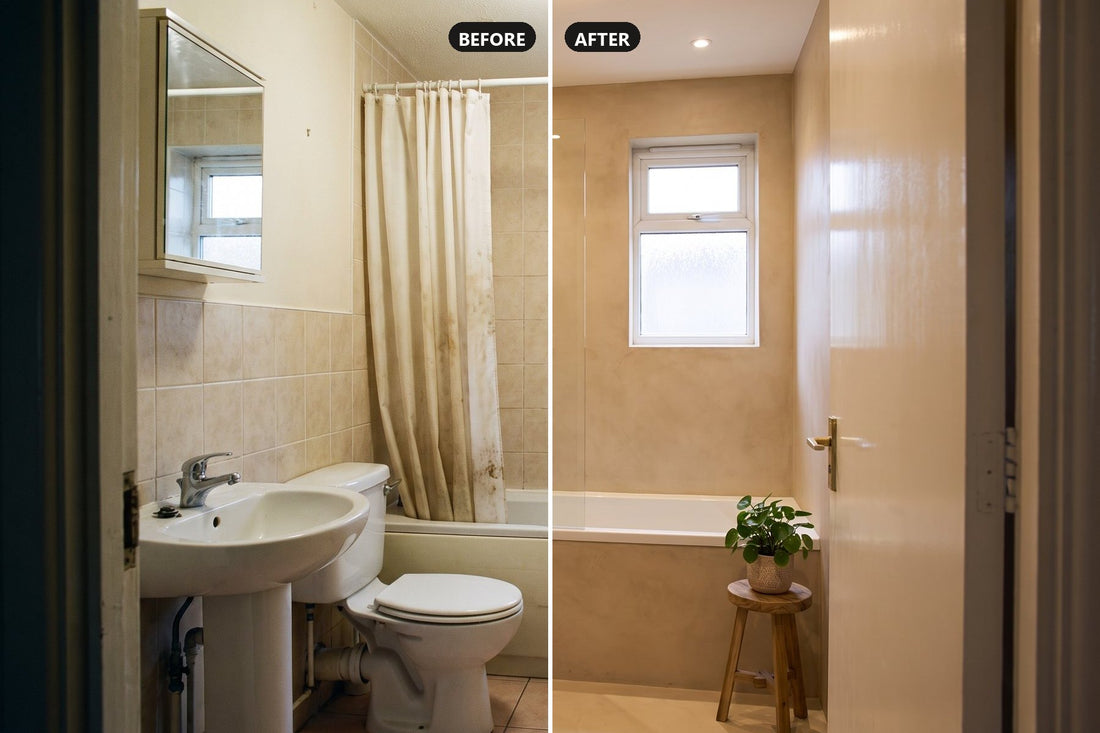

Before
Option A
Option B
What can AI do for bathroom design, and what can't it?
It's excellent for the look: tiles, colours, vanities, taps, lighting, mirrors and the overall feeling of the room. You can compare a calm spa bathroom with a crisp classic one in minutes.
It can't see behind the walls. It doesn't know where your drain runs, whether the floor can take a heavy stone bath, how the room is ventilated, or which electrical rules apply near water. Those decide what's possible, so they have to come from a plumber, an electrician or a designer, not from a picture.
Which bathroom clearances should you check?
These come from the National Kitchen & Bath Association's Bathroom Planning Guidelines and are the ones AI renders ignore most often:
- Toilet from the side wall. NKBA recommends 18 inches (about 46 cm) from the centre of the toilet to any side wall or fixture. The common code minimum is 15 inches (about 38 cm), best kept for very small rooms.
- Space in front of the toilet. NKBA suggests 30 inches (about 76 cm) of clear space in front of the bowl for comfort, more than the typical 21-inch code minimum.
- Clear floor space at each fixture. For accessible planning, allow a clear area of 30 by 48 inches (about 76 by 122 cm) at each fixture.
Your local building code has the final word, and electrical rules for wet areas vary by country, so check both before you commit to a layout.
How do you redesign a bathroom with AI, step by step?
1. Shoot from the doorway
Stand in the doorway, hold the phone level and include the floor, the bath or shower, the basin, the toilet and the window. Put away the towels and bottles. A wide lens helps in a small room, but avoid the extreme 0.5x setting, which bends walls.
2. Keep the fixtures where they are
Moving a toilet or a shower usually means moving drains, which is where bathroom budgets go to die. So ask AI for a new bathroom in the same layout first. This is the prompt behind option A:
Renovate this exact bathroom as a calm spa-like Japandi bathroom. Keep the same room size, window position, door position, the bathtub in the same place, and the sink and toilet in the same places, same camera angle. Replace: warm sand microcement walls and floor, the bath boxed in with microcement, a floating oak vanity with a stone basin, a round mirror, a wall-hung toilet, brushed brass taps, a glass shower screen instead of the curtain, soft warm lighting. Photorealistic.
3. Compare two directions
One warm, one crisp is a good pairing, because that's the real choice most people are making. Keep everything else in the prompt identical, so the comparison is fair.
4. Test the small things
Change one thing at a time: brass or black taps, a round or rectangular mirror, large tiles or small ones, a glass screen or a curtain. In a small room, these details decide how big it feels.
5. Check it against reality
Look for a vanity that's grown wider than the wall, a toilet with no room in front of it, a window that's moved, or a shower screen that would block the door. Note each one for the real plan.
How do you make a small bathroom look bigger?
AI is a quick way to test these, and they're some of the most reliable tricks designers use:
- Large tiles, few grout lines. Fewer lines make a surface read as one plane.
- Wall-hung fittings. A floating vanity and wall-hung toilet show more floor, and more visible floor makes a room feel bigger.
- A glass screen instead of a curtain. The eye travels through glass. A curtain cuts the room in half.
- One material, floor to wall. Microcement or matching tiles on both blur the edges of the room.
- A big mirror. The wider the better, lit from the sides or behind.
Which bathroom looks work well right now?
| Look | Key ingredients | Watch out for |
|---|---|---|
| Spa / Japandi | Microcement or large stone-look tiles, oak vanity, brass or black taps | Microcement needs an experienced installer |
| Classic black and white | Metro tiles, checkerboard floor, nickel fittings, pedestal basin | Dark grout needs sealing to stay neat |
| Warm Mediterranean | Zellige or terracotta tiles, plaster tones, arched mirror | Handmade tiles vary, so order extra |
| Bold colour | Coloured tiles or paint, patterned floor, statement mirror | Test the colour in the room's real light |
For the method behind all of this, see our complete guide to AI interior design, and our AI kitchen design guide for the other room where layout rules matter most.
Designing bathrooms for clients? Our AI for Architects and Interior Designers course covers renders and plans that keep the real dimensions, worked on your own projects, with a private 1:1 session at the end.
Frequently asked questions
Can AI design a bathroom layout?
It can suggest one visually, but it doesn't know where your drains run or what clearances your code requires. Use AI for finishes and style, keep fixtures in their current positions where you can, and get the layout checked by a plumber or designer.
What is the best AI for bathroom design?
General image models such as ChatGPT and Google Gemini are good for restyling a photo of your own bathroom, because you can tell them exactly what must stay. Dedicated room apps are quicker for browsing styles, with less control.
How far should a toilet be from the wall?
NKBA recommends 18 inches (about 46 cm) from the centre of the toilet to a side wall or fixture, with 15 inches as the usual code minimum. Allow about 30 inches of clear space in front of the bowl for comfort.
Is it cheaper to keep the bathroom layout the same?
Usually, yes. Moving a toilet or shower often means moving drains and pipes, which adds cost. Keeping the layout and changing finishes, fittings and lighting is typically the most affordable way to transform a bathroom.
Keep the plumbing where it is and let AI change everything you can see. It's the fastest route to a bathroom that feels new without a budget that feels endless.
